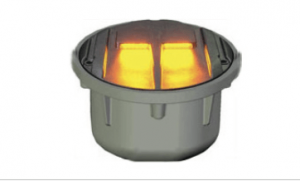

The LineLight R1 is a high-intensity, heavy duty wired marker for uni-directional marking.
Key Features
Incredibly durable and long lasting:
- Stainless steel body
- Military-grade high mechanical resistance design – resistant to tanks, trucks, snow plows and other heavy machinery
- High compression strength (1000kg / cm)
- Absolute water resistance (IP68)
Flexible and Customizable:

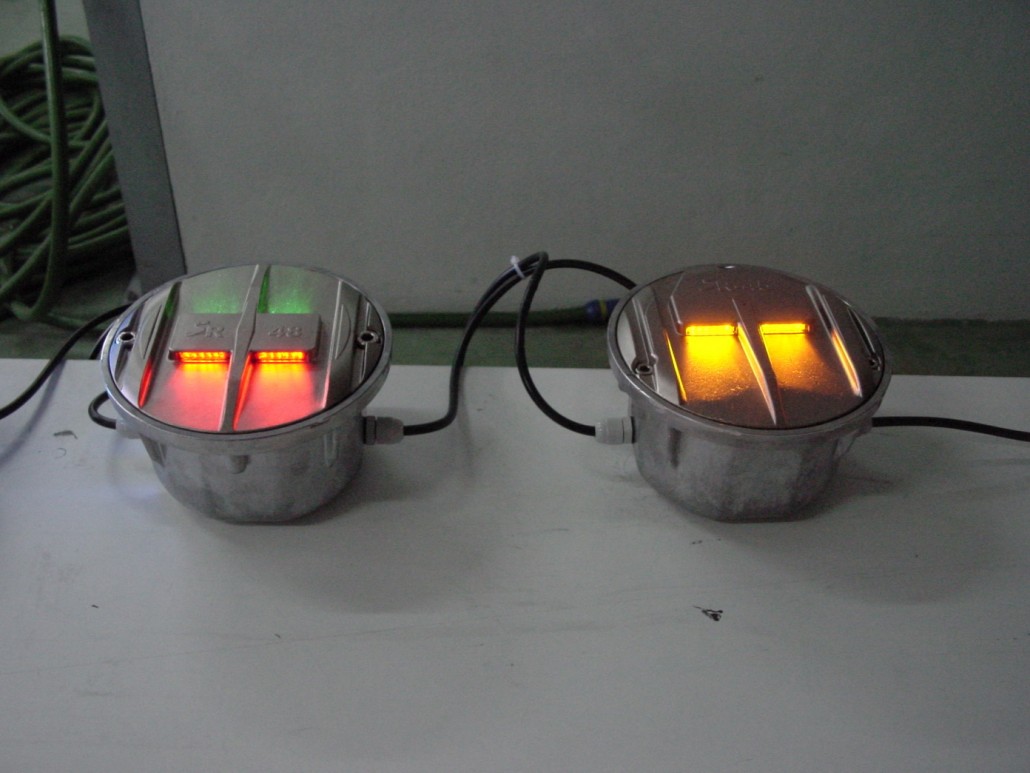

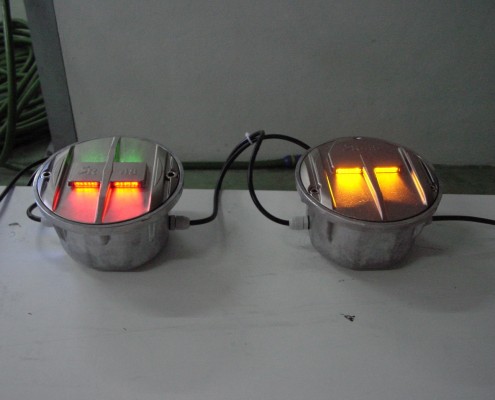

- With a variety of LED colors the R1 can be configured to change colors as needed – an ideal feature for applications such as parking lot entrances, lane delineation and toll plaza lane signaling.
- Adjustable luminance levels
- Programmable Flashing, sequential flashing or steady lighting and timer configurations
- Optional PC, RF and GSM Remote control
Easy maintenance:
-
A fixed base and a removable main unit body allows for easy maintenance if needed
Uses and Applications Guide
- Tunnels, parking lots, indoor spaces, walkways
- In-Ground signaling applications (parking lot entrances, toll plaza lane control etc.)

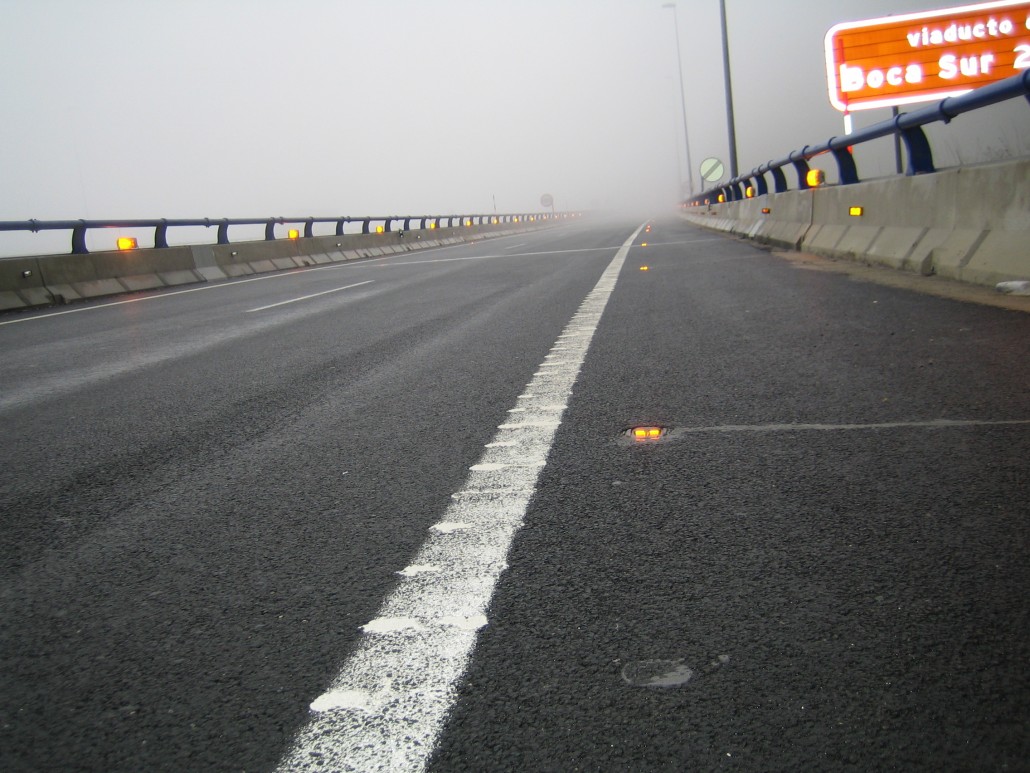

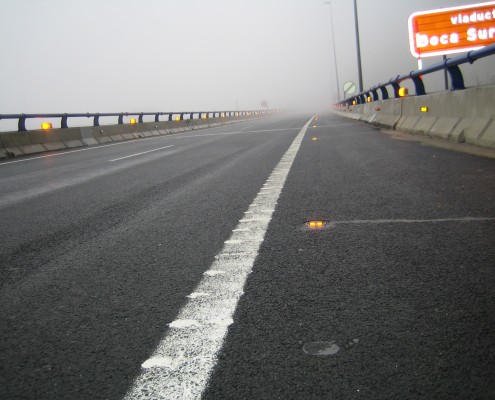

- Areas with inclement weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.)
- Crosswalks, bike and pedestrian lanes Ship and water craft decks

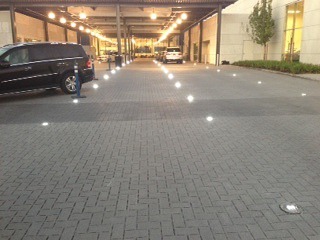

- Entertainment areas, parking lots, hotel entrances, gas stations and many more!
Technical Specifications
TECHNOLOGY AND OPERATION |
|
Energy Source |
– Solar modules
– External DC feed
– Hybrid – Solar & External DC backup feed |
Energy consumption |
12V-24V DC, 160mA |
Illumination technology |
12 x Ultra-bright ?3mm LEDs. |
Operating temperature range |
-22F to +185F / -30C to +85C |
Warranty |
2 years |
ILLUMINATION PROPERTIES |
|
Available Flash Patterns |
Controllable – Flashing, Steady or Sequential |
Available colors Lighting intensity (mcd) |
• White: 6400
• Blue: 3200
• Red: 3500
• Green: 11000
• Amber: 4500 |
Light Visibility Distance |
Up to 3,280 feet / 1km
(varies according to weather conditions) |
MATERIAL AND DESIGN |
|
LED protector |
UV-treated Polycarbonate |
Case |
Aluminum & Anti-corrosion stainless steel |
Compressive Strength |
1,000kg/cm |
Dimensions – Body |
? 6.29” x 3.93” / ?160mm x 100mm |
Raising above grade |
0.275? / 7mm |
Weight |
6.61lbs / 3kg |
Water Protection |
IP68 |
