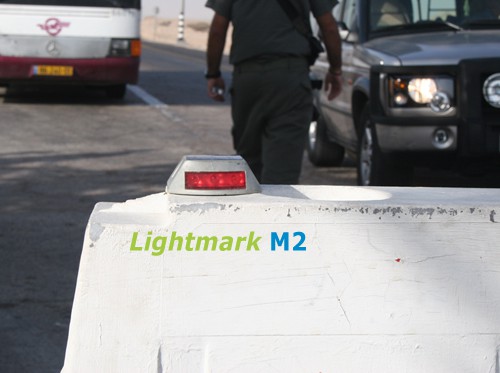

LightMark M2™ is uniquely designed for the marking of any structure in both horizontal and vertical orientation.
LightMark M2™ is available in a variety of LED colors, steady or flashing configurations, an optional passive reflective surface.
Uses and Applications Guide
Lane deliniation
Shoulder marking
Lane dividers
Safety guide rails
Curves and turns
Crosswalks
Speed humps
Traffic circles / islands
General traffic calming
Security barricades
Marking of underground cables
Fire hydrant marking
Technical Specifications
TECHNOLOGY AND OPERATION
Solar Panel Type
Mono-Crystalline
Illumination Technology
3 / 6 Ultra-bright Chip LED
Energy Storage
Ultra-Capacitor
Charging Time
3 Hours (sunny) to 8 hours (cloudy or rainy)
Temperature Range
-40F to +176F / -40C to +80C
Water Resistance
IP 68
ON/OFF Level
150 lux / 370 lux
Operation Per Charge Cycle
Up to 16 hours
Warranty
1 year
ILLUMINATION PROPERTIES
Available Flash Patterns
Steady, Slow Flashing, Fast Flashing
Available Colors
White, Blue, Red, Green, Amber
Light Visibility Distance
Up to 3,300 feet / 1km (varies according to weather conditions)
MATERIAL AND DESIGN
Lens
A.B.S
Body
Aluminum
Compressive Strength
1,000kg/cm

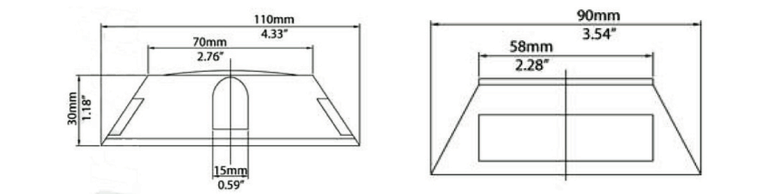

Dimensions – Body
L 4.33? x W 3.54? x H 1.18?/ L 110mm x W 90mm H 30mm
