Enya Series- SolarPath Sun Solutions

Enya Series™

Description

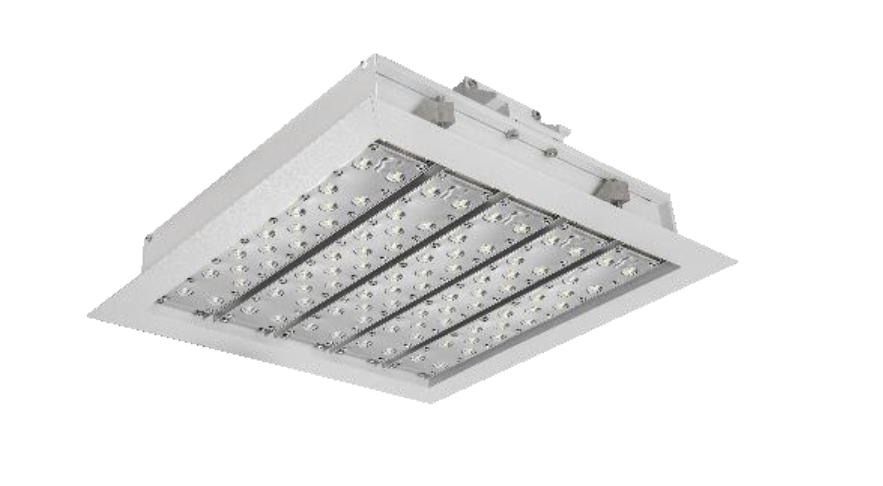

When compared to similar LED solutions in a canopy application, the ENYA fixture stands out from the crowd with its unique design which significantly reduces labor and maintenance cost.

Key Features

? Die cast aluminum housing.
? Modular design allows for easy installation, replacement and maintenance.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Precision lens system provides optimized illumination for intended area.
? High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
? Multiple lighting control options are available, e.g. DALI, 1-10V.
? 10 years limited warranty available.

Technical Specifications

	Enya Series™
Power	60-160W
Input	120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF	>0.95
THD	<20%
L85	>60,000H
Operating Temperature	-40F- 122F
Efficacy	120-140lm/W
ANSI CCT	3000K/4000K/5000K/5700K
Min CRI	70* or 80 or 85
IP Rating	IP67
SPD	10KA* or 20KA
Dali	Optional
1-10V	Optional
Photocell	/
Smart Control	Optional
Optic(IESNA)	Type I, Type II, Type III, Type IV, Type V
Color Options	White

Spec Sheet

IES
